Failed On Semi MC14070BG CMOS SSI

Gideon Analytical Analytical Laboratories received one On Semi MC14070BG CMOS SSI  in a SOEIAJ-14 package, with the 15V supply line pulled down to 3.5V. The MC14070B quad exclusive OR gate and the MC14077B quad exclusive NOR gates are constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. These complementary MOS logic gates find primary use where low power dissipation and/or high noise immunity is desired. The CMOS is a Complementary metal–oxide–semiconductor, which is a technology for constructing integrated circuits. CMOS technology is used in microprocessors, microcontrollers, static RAM, and other digital logic circuits. CMOS technology is also used for several analog circuits such as image sensors (CMOS sensor), data converters, and highly integrated transceivers for many types of communication. The goal was to determine why the On Semi MC14070BG CMOS SSI was failing.

Failure analysis ensued. TheOn Semi MC14070BG CMOS SSI was decapsulated. The zener protection between the ground and supply voltage remained intact, however, there were signs of a resistance short between ground and supply voltage. The failure site was on the Vdd line. All indications point to excessive voltage as the cause of this failure.

Gideon Analytical Laboratories is one of the preeminent failure analysis laboratories in the entire world. We have the experience and analytical equipment to tackle almost any electrical problem. Moreover, we truly enjoy what we do. Call us crazy, but solving electrical problems is our passion. We take tremendous pride in what we do, and it is extremely satisfying to help companies ensure that their products are reliable. If you have an electrical problem, call Gideon Analytical Laboratories today.

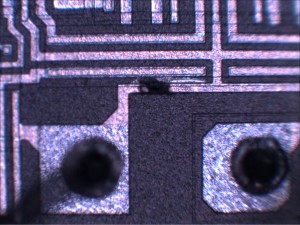

Close up of resistive short

Close up of resistive short

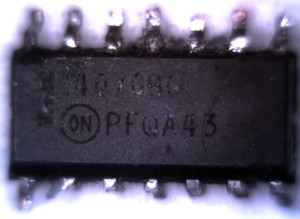

On Semi MC14070BG CMOS SSI

On Semi MC14070BG CMOS SSI

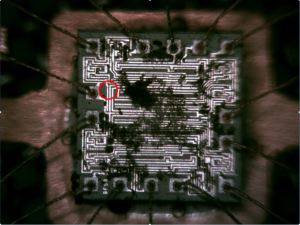

Failure Site in Red Circle
