Vishay MKT 1917 Film Capacitor Failure Analysis

Gideon Analytical Labs received three partial boards with four coupling Vishay MKT 1817 63V ERO 0225 film capacitor failures. After electrical measurements and considerable testing, the ESR was found to be the cause of the failure, however, what caused the ESR to elevate?

It was determined the packaging on the capacitor was not adequately protecting the terminal end from the outside environment. Moisture ingress elevated the ESR and with higher ESR, the higher the heat produced in the circuit. This capacitor was a replacement for another capacitor once used in the circuit. This capacitor had higher ESR than its predecessor. Thus, with the higher ESR to begin with, the moisture and ionic ingress through the package and the ripple current being used in the application this lead to thermal failures.

Gideon Analytical Labs can solve many problems with 30 years of experience and instrumentation specifically for the electronic industry. We can solve your failures too.

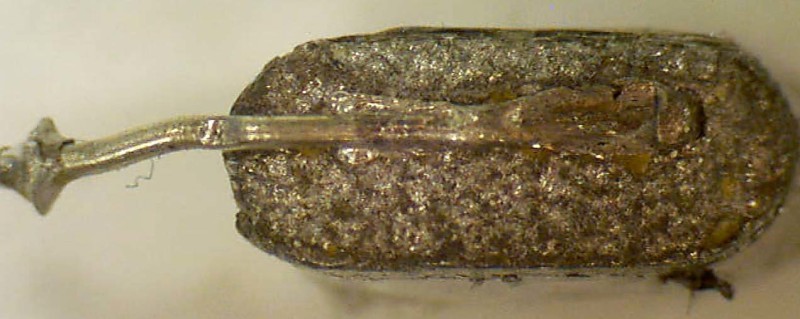

Metal film capacitor

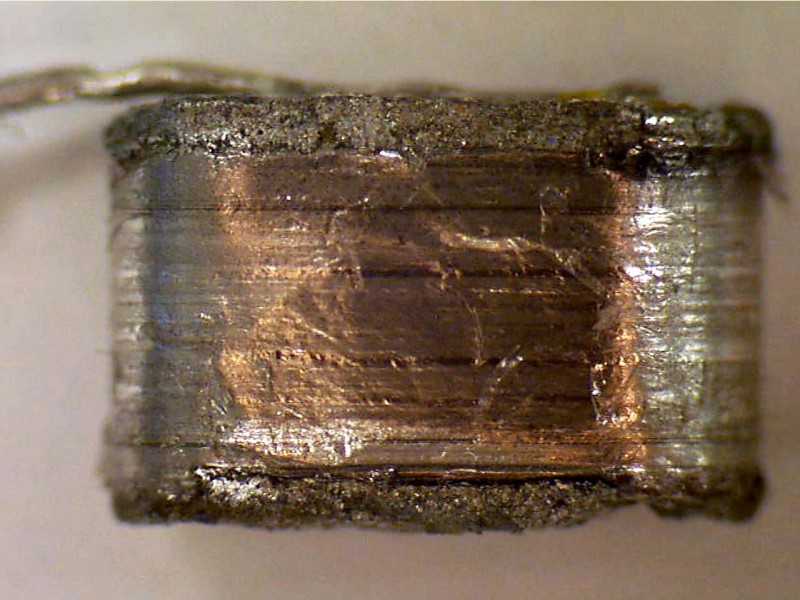

Metal film capacitor

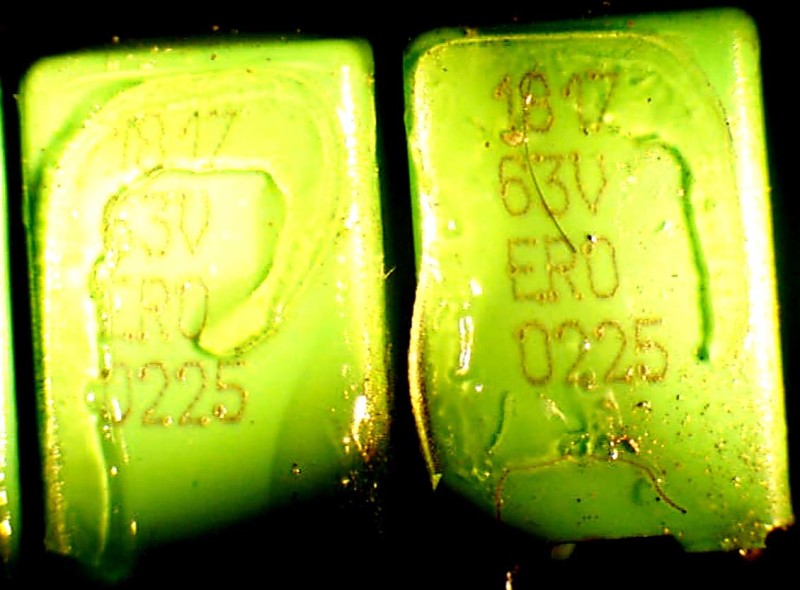

PET Metal Film Capacitor

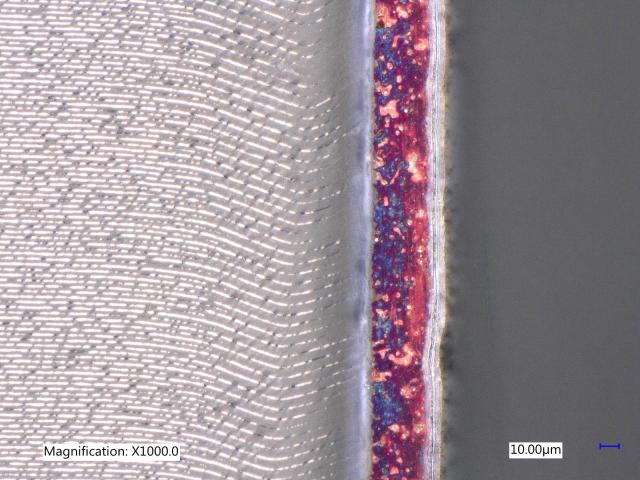

Termination metal with poor solderability.
