Spring Evaluation

Gideon Analytical Laboratories received several failed and several good Shanghai Daido springs for evaluation. Shanghai Daido SP Co makes four types of springs: compression, heavy load, tension, and torsion. Gideon Analytical Laboratories was altered to possible contamination on the failed springs. The goal was to see why these springs were failing.

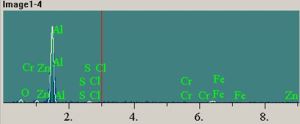

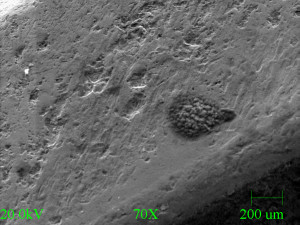

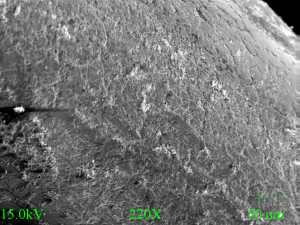

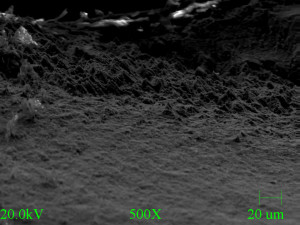

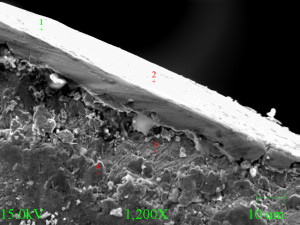

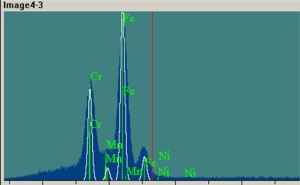

Failure analysis ensued. SEM-EDS analysis was first utilized to ascertain the elements present within the springs. Micrographs of the first spring pictured a low energy granular type structure with a shiny surface. There were areas that were pitted, and in other areas, severe dissolution of the metal. EDS spectra revealed the presence of chlorides within the nickel and chromium exterior. Micrographs of another spring revealed the decreased presence of nickel. The fourth spring was a catastrophic failure; it had large pits and corrosion was obvious. EDS spectra revealed the presence of chlorides. In summary, pitting was observed on five of the springs, and chlorides were present on these five springs. Corrosion caused cracking, and cracking caused failure.
